Examples

2D Photonic Crystals

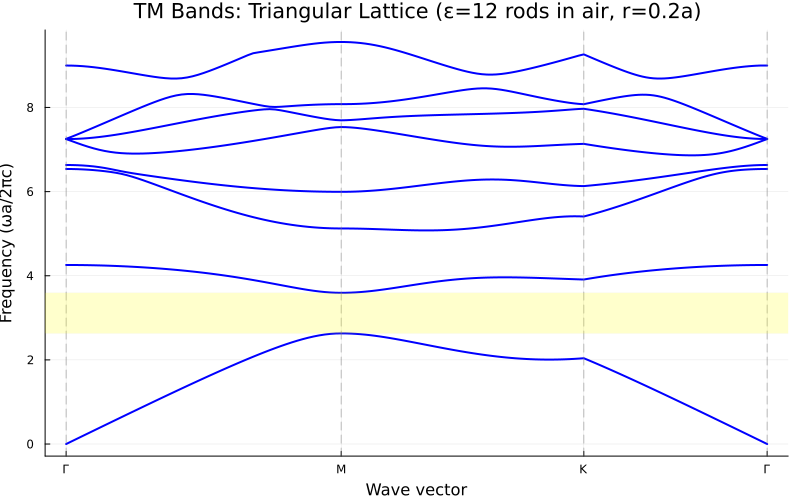

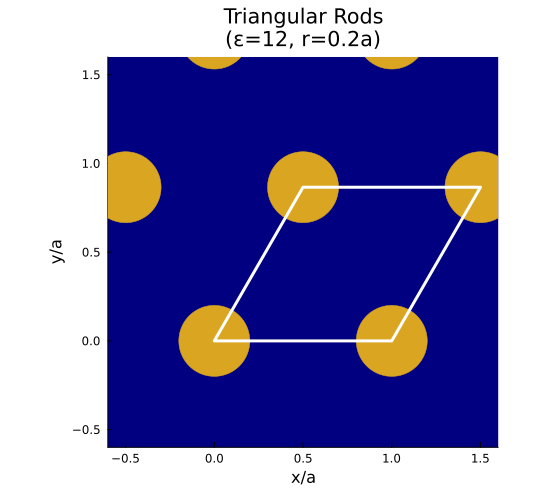

Triangular Lattice Rods (TM mode)

Source: examples/101_triangular_rods.jl

Dielectric rods (ε=12) in air, radius r=0.2a.

lat = hexagonal_lattice(1.0)
air = Dielectric(1.0)
rod = Dielectric(12.0)
geo = Geometry(lat, air, [(Circle([0.0, 0.0], 0.2), rod)])

solver = Solver(TMWave(), geo, (64, 64); cutoff=7)
kpath = simple_kpath_hexagonal(npoints=30)
bands = compute_bands(solver, kpath; bands=1:8)

The TM mode shows a clear band gap between bands 1 and 2.

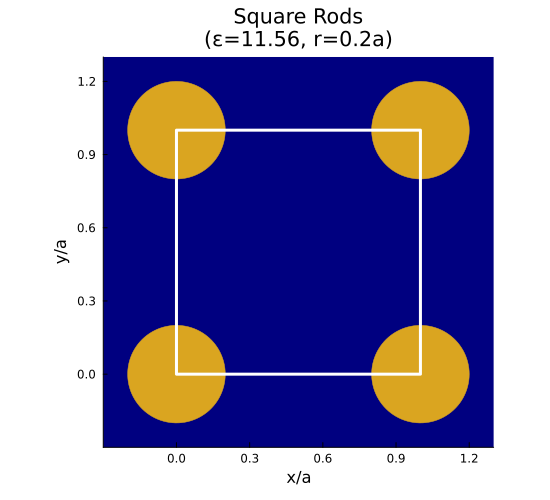

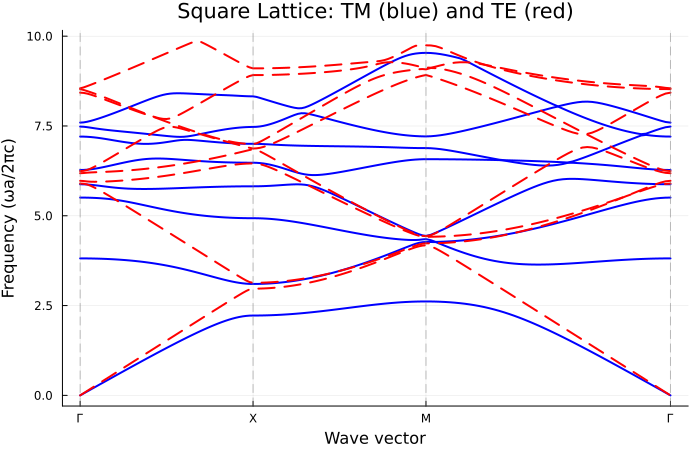

Square Lattice Rods (TE/TM comparison)

Source: examples/103_square_rods.jl

lat = square_lattice(1.0)
geo = Geometry(lat, air, [(Circle([0.0, 0.0], 0.2), rod)])

solver_te = Solver(TEWave(), geo, (64, 64); cutoff=7)
solver_tm = Solver(TMWave(), geo, (64, 64); cutoff=7)

This example also demonstrates iterative solvers:

# KrylovKit (Arnoldi iteration)
solver = Solver(TMWave(), geo, (64, 64), KrylovKitMethod())

# LOBPCG (Block CG)
solver = Solver(TMWave(), geo, (64, 64), LOBPCGMethod())

2D Phononic Crystals

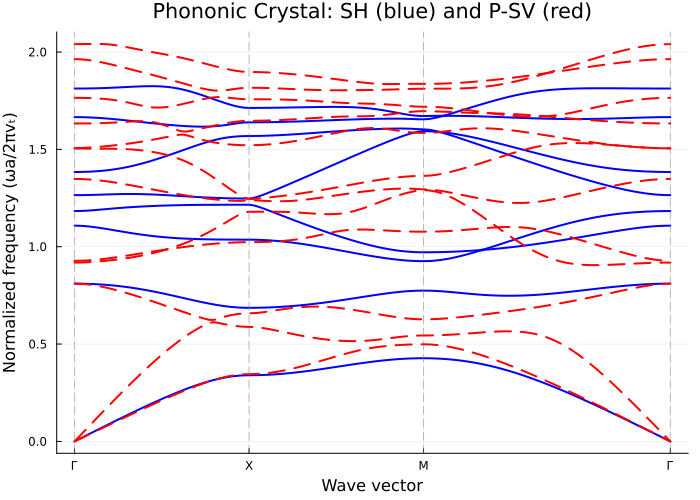

Steel/Epoxy (SH and P-SV modes)

Source: examples/201_phononic_steel_epoxy.jl

Steel cylinders in epoxy matrix.

epoxy = IsotropicElastic(ρ=1180.0, λ=4.43e9, μ=1.59e9)
steel = IsotropicElastic(ρ=7800.0, λ=1.15e11, μ=8.28e10)

lat = square_lattice(0.01)  # 1 cm period
geo = Geometry(lat, epoxy, [(Circle([0.0, 0.0], 0.004), steel)])

solver_sh = Solver(SHWave(), geo, (64, 64); cutoff=7)
solver_psv = Solver(PSVWave(), geo, (64, 64); cutoff=7)

This example also compares Dense, KrylovKit, and LOBPCG methods for phononic problems.

Solver Comparison (Dense vs LOBPCG)

Source: examples/207_solver_simple.jl, examples/208_solver_comparison.jl

Benchmark Dense and LOBPCG solvers for phononic band structure calculations.

# Dense solver (default, exact)
solver_dense = Solver(PSVWave(), geo, (64, 64); cutoff=15)

# LOBPCG solver (faster for large problems)
solver_lobpcg = Solver(PSVWave(), geo, (64, 64), LOBPCGMethod(); cutoff=15)

bands = compute_bands(solver, kpath; bands=1:10)

LOBPCG becomes faster than Dense for cutoff ≥ 12. See LOBPCGMethod for details.

1D Structures

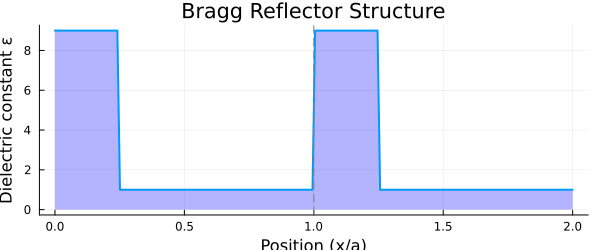

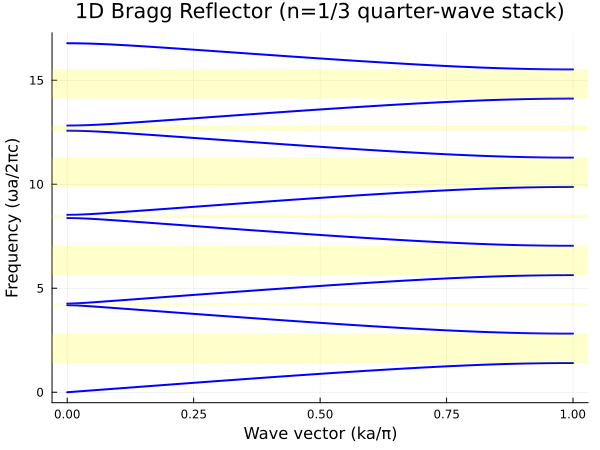

Bragg Reflector

Source: examples/301_bragg_reflector.jl

Quarter-wave stack of two dielectric materials.

lat = lattice_1d(1.0)
mat1 = Dielectric(1.0)
mat2 = Dielectric(12.0)

# Quarter-wave thickness ratio
d1 = 0.5 * sqrt(12) / (1 + sqrt(12))
geo = Geometry(lat, mat1, [(Segment(0.0, d1), mat2)])

solver = Solver(Photonic1D(), geo, 128; cutoff=20)

# Or with iterative solvers
solver = Solver(Photonic1D(), geo, 128, KrylovKitMethod(); cutoff=20)
solver = Solver(Photonic1D(), geo, 128, LOBPCGMethod(); cutoff=20)

3D Photonic Crystals

For 3D photonic crystals, TransverseEM is the recommended wave type. It uses a 2N×2N transverse basis that automatically satisfies ∇·H = 0, eliminating spurious longitudinal modes.

FCC Lattice with Spheres

Source: examples/401_fcc_spheres.jl

Dielectric spheres (ε=12) in air on an FCC lattice.

lat = fcc_lattice(1.0)
air = Dielectric(1.0)
sphere = Dielectric(12.0)
geo = Geometry(lat, air, [(Sphere([0.0, 0.0, 0.0], 0.25), sphere)])

# TransverseEM: recommended for 3D photonic crystals
solver = Solver(TransverseEM(), geo, (16, 16, 16), DenseMethod(); cutoff=5)

# Use 3D k-path
kpath = simple_kpath_fcc(a=1.0, npoints=20)
bands = compute_bands(solver, kpath; bands=1:6)

Simple Cubic Lattice with Spheres

Source: examples/402_sc_spheres.jl

lat = cubic_lattice(1.0)
geo = Geometry(lat, air, [(Sphere([0.0, 0.0, 0.0], 0.3), sphere)])

solver = Solver(TransverseEM(), geo, (16, 16, 16), DenseMethod(); cutoff=5)
kpath = simple_kpath_cubic(a=1.0, npoints=20)
bands = compute_bands(solver, kpath; bands=1:6)

More Examples

See the examples/ directory in the repository for additional examples:
